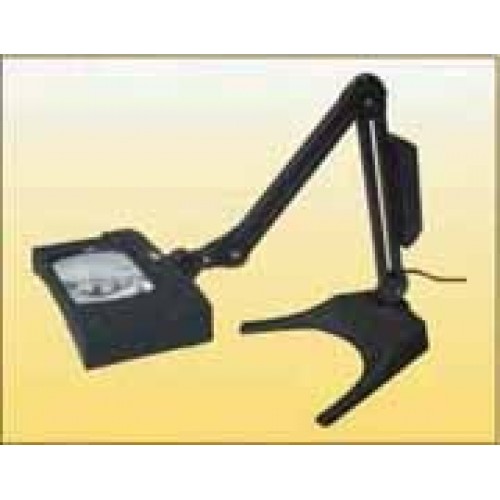

ZABBYS ESD SAFE MAGNIFIER DELUXE MODEL ZL-104EVDX Lens dia: 170mm x 105mm Magnification: 4X Illumination: 7W two independent directional and simultaneous working CFL Working dist: 250mm Reach: 900mm Surface finish: Lens: No spherical aberrations, strain free vision Illumination: Shadowless, glare-free, daylight color Surface Resistivity: 10E6 - 10E11 Ohms/sq Surface to Gnd Resistance: 10E5 - 10E9 Ohms Static Generation: NIL Features • Most pleasing form and aesthetics • Enclosed construction helps improve life • Can be used in highly corrosiveor humid environment • Confirm to requirement of EOS/ESD Association Standards 20.20 (1999) for Electrostatic Discharge control areas Lens: • 4X Magnification • No chromatic or spherical aberrations over entire field of view • Perfect strain free vision • Bi-ocular vision with depth perception and comfortable 250mm working distance Illumination: • 22W circular fluorescent tube • Housed in a tough ABS shed around the lens • Shadowless, glare free light • Cool and of daylight color Versatility: • Easy positioning of the lens/light module at any point in any orientation • Well-balanced stand • Feather touch movement • 900 mm movement from the base • Specially engineered to provide trouble-free functioning and long durability under tough working conditions Aesthetics: • Fully Enclosed Construction • Pleasing and an elegant appearance • Perfect finish in combination of chrome and matched pastel shades • Please click here for Certificate on ESD safe magnifiers, Why ESD Safe Magnifiers? Extensive use of highly electro-static discharge (ESD) sensitive components in today's electronic industry necessitate manufacturing & assembly shop floors to be designed and set up with this aspect in mind, and it is necessary that the equipment used there must confirm to this requirement. We have done considerable research in order to provide this solution in regard to Magnifiers. The damage to the sensitive components occurs due to electric discharge between component and some charged object in the vicinity, or a conductor shorted to the ground. The damage can be total or irreversible, and if the component is mounted on a board the entire board can get rejected. Like all other equipments and instruments used in these factories, the Magnifiers too have to be ESD proofed. In our ESD Safe Magnifiers this is ensured in terms of various parameters (quantitative values given below) such as static generation, resistance value from surface to ground, and surface resistivity - which must remain within the Dissipative Range. To attain these parameters we use specially imported dissipative polymers, dissipative paints, dissipative coatings, special electrical layout etc. Electrical Resistance Values of our Magnifiers & their components: Surface Resistivity : 10E6 - 10E11 Ohms/sq Surface to Ground Resistance : 10E5 - 10E9 Ohms Static Generation (by friction with Thermo cool) : NIL The above figures confirm to requirement of EOS/ESD Association Standards 20.20 (1999) for Electrostatic Discharge control areas. (NB: It is necessary that all other items in the work area such as packing materials/bags, work bench surfaces, storage racks, grounding cords, chairs, mats, bins, floor surfaces, footwear/gloves/aprons, conveyor belts etc. have resistance properties that remain well within 10E3 to 10E12 Ohms.) OTHER FEATURES OF OUR MAGNIFIERS Please download for various features of our Magnifiers, as well as Special Versions, Mounting Options and Accessories - most of which are available in ESD Safe versions. For specific details kindly contact us.
