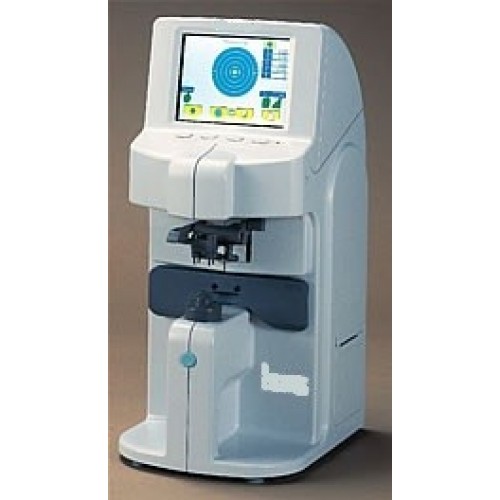

ZABBYS JAPANESE AUTO LENSOMETER Z-AUTO-LENS:
Overview Color 5.7inch LCD screen
Color LCD screen produces superb colorful display of the measurement deta and icons for easier identification to select your desired choices for the measurement. Measurement of various lenses
Measurement of various lenses, such as single lens, multifocal lens,progressive lens, frame lens and contact lenses, can be performed. | |
Easy lens plate without operating the lever
A troublesome lever does not need to be operated. Push the PUSH mark on the lens plate. The lens plate comes out.The lens plate always touches the bottom of the lens without operating the lever.
| |
Automatic judgment for a progressive lens
You can automatically check whether the lens is a progressive lens or not.
FAR POINT and NEAR POINT can be easily measured by directions and a graph display of color LCD screen.
| |
Convenient contact lens measurement
If the convenient contact lens holder in the standard accessories is used, hard and soft contact lenses can be simply measured without touching by hand.
| |
Cartridge-type marking pen
Uniform marking can be performed with a cartridge-type marking pen, and handling is also easy. Printer is built in
Thermal Printer is built in. The measuing data can be printed if you push the print switch. HI INDEX LENS measurement
You can select ABBE number to compensate the measurement for HI INDEX LENS. RS-232C setting function
You can send the measurement data to an external computer through an interface. The data is sent using ASCII CODE. |
Specifications
Measurement Range | Sphere | -25D～ 25D （0.01／0.12／0.25 step） |
Cylinder | 0～±10D（0.01／0.12／0.25 step） |
Axis | 0～180° （1°) |
Addition | 0～ 10D（0.01／0.12／0.25 step） |
Prism | 0～10△（0.01／0.12／0.25 step） |
Measurement wavelength | 650nm |
Measurable lens | Unprocessed lens（diameter：90mm）, Frame lens｝Single lens, multifocal lens, progressive lens |
Hard contact lens, Soft contact lens |
Power supply | 100～240V 50／60Hz |
Printer | Thermal printer（paper width 58mm） |
Monitor | Color LCD monitor（5.7inches） |
External Interface | RS-232C |
Dimension | 200（W）×260（D）×443（H） |
Weight | approx.5.2kg |
Standard accessories | Power cord, Contact lens stand, Rolls of printing paper, Printer shaft, Dust cover, Dust cloth. |
