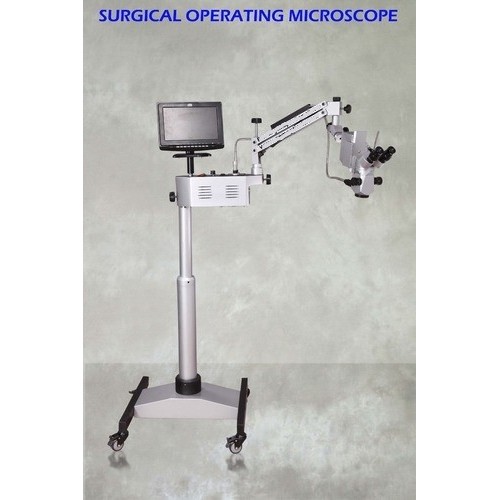

Technical specifications

microscope section

·          innovative designed, highly versatile with latest 45° inclined optical system

·          15x wide field eye pieces

·          3 step magnification ( 5x, 10x & 20x) or

·          5 step magnification (0. 4x, 0. 63x, 1x, 1. 6x & 2. 5x) or

·          continuous zoom (5x ~ 25x)

·          beam splitter with ‘c’ mount

·          ccd digital camera

·          working distance : f= 200mm objective lens

·          interpupillary distance adjustment: 55mm to 75mm

·          focusing – manual or motorized with foot control

·          lcd monitor/screen : mount on microscope to display live surgery

illumination section

·          light source : 15v-150w / 24v-250w twin halogen reflector lamp

·          illumination control : continuous adjustment

·          co-axial through-the-lens fiber optic light guide, white bright light

·          field of illumination : 70mm

·          filter : cobalt blue, red-free, heat absorbing filter

stand section

·          type : mobile floor stand on four castor wheel for easier handling and absolute stability

·          vertical height adjustment range of counter balanced pantographic arm: 300 to 560mm

·          rotation of arm : 320 with lock

general information

·          base size : 600mm x 550mm

·          weight : 65 kgs. Approx.

·          height : 1550mm

·          electrical power : ac 220v, 240v, 50/60hz or 110 v on request

·          power consumption : 220va or 110 v

optional accessories

·          monocular assistoscope

·          objective lens 250mm, 300mm & 400mm
