TECHNICAL SPECIFICATIONS

MICROSCOPE SECTION

· Innovative designed, highly versatile with latest 45° Inclined optical system

· 10x Wide Field eye pieces

· 3 Step Magnification ( 5x, 10x & 20X) or

· 5 Step Magnification (0.5x, 0.63x, 1x, 1.6x & 2.5x) or

· Continuous Zoom (5x ~ 25x)

· Beam Splitter with ‘C’ Mount

· CCD Digital Camera

· Working distance : F= 200mm objective lens

· Interpupillary Distance Adjustment: 55mm to 75mm

· Focusing – Manual or Motorized with Foot Control

· LCD Monitor/Screen : Mount on Microscope to display live surgery

ILLUMINATION SECTION

· Light Source : 15V-150W / 24V-250W Twin Halogen Reflector Lamp

· Illumination Control : Continuous Adjustment

· Co-axial through-the-lens fiber optic light guide, white bright light

· Field of Illumination : 70mm

· Filter : Cobalt Blue, Red-Free, Heat Absorbing Filter

STAND SECTION

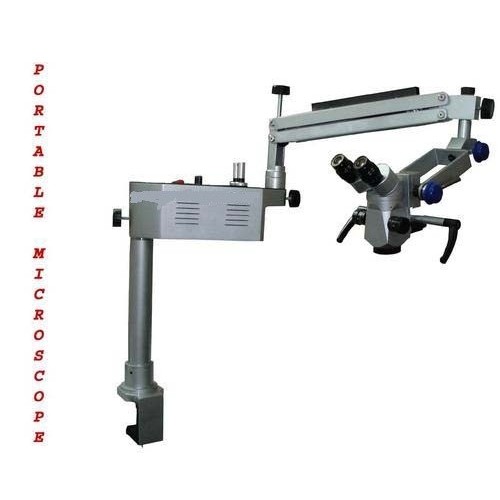

· Type : Portable / Table Stand for easier handling and absolute stability

· Vertical Height Adjustment

· Rotation of Arm : 320 with lock

GENERAL INFORMATION

· Weight : 35 kgs. Approx.

· Electrical Power : AC 220V, 240V, 50/60Hz or 110 V on request

OPTIONAL ACCESSORIES

· Monocular Assistoscope

· Objective Lens 250mm, 300mm & 400mm
