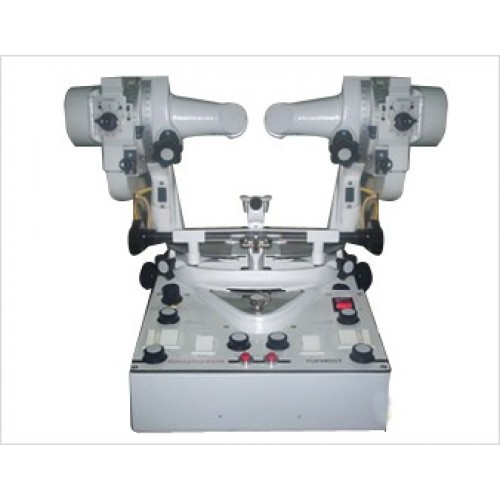

ZABBYS SYNOPTOPHORE Z-SYNO:

Synoptophore is kind of diagnostic and remedial equipment. This is used to diagnose & treat binocular functions, such as strabismus, amblyopia, diplopia, etc., It is highly user friendly and available in the weight of 61 kg.

Magnification: 1.65×

Diameter of Visual Field: =56mm

Red light wavelength=640nm

Left and right tubes around erect axis: concourse 50°, radiation 40°

Left and right tubes around horizontal axis: ±30°

Pictures of left and right can be moved up and down according axis: ±10?

Pictures of left and right can be moved up and down around optical axis: ±20°

Adjustable range of pupil distance: 45-75mm

Darkroom illumination: LED luminophor with symmetry design

Adjustable Haidingers Brush: 50-100round/ minute

Coruscation form: manual or automatical

Automatical coruscation frequency: ten-step, 30-300times/minute.

Range of automatic coruscation(each cycle):1/4 on 3/4 off, 1/2on 1/2 off, 3/4 on 1/4 off

Type of automatic coruscation:
The left and right can be turned on or off at the same time
The left and right can be turned on or off alternatively
One on and the other off.
One on or off while the other can be turned on or off

Synoptophore is instrument that encompasses the measurement of misalignment of the eyes. In other words it is helpful in checking the Binocular Vision of the Patient in addition to this it provides a Three-Dimensional or Depth Perception between the eyes.

Specifications

Movement Of Optical Tubes	:	Horizontal	:	Adduction + 50°
				Abduction -40°

		Vertical	:	Hyper 30°
				Hypo 30°

		Torsional	:	Incyclo 20°
				Excyclo 20°

Slide Illumination

Rheostat Controlled 12V Lamp for Each slide. After Image Illumination by 12V Lamp (For Better Illumination)

Auto Flashing

Auto Flashing Of Slide Illumination Either Simultaneous or Alternate in Paid &Variable modes.

Mode & Mode Selection

Normal, Flashing Right, Flashing Left. Flashing R+L & Auto flashing, can be Selected By a Single Selector knob.

Standard Accessories

	Dust Cover
	A set of slides containing 9 Pairs power Cord.

ZABBYS SYNOPTOPHORE Z-SYNO - PRICE INCLUDES PACKING AND FREIGHT

Product Code: OE-061
Availability: In Stock

$1,300.00
Ex Tax: $1,300.00

Qty

ZABBYS SYNOPTOPHORE Z-SYNO - PRICE INCLUDES PACKING AND FREIGHT

$1,300.00
